ZTE CC16B Control&Clock board for ZTE B8200 B8300 CCE1 CC16 CC16A CC16B CC17B

Name: ZTE CC16B ControlampClock board for ZTE B8200 B8300 CCE1 CC16 CC16A CC16B CC17B
Brand: Huawei
Price: 1 USD

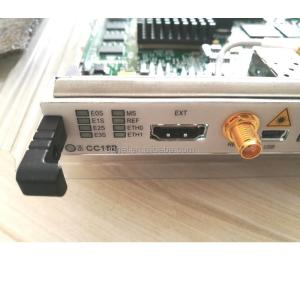

Cheap ZTE CC16B Control&Clock board for ZTE B8200 B8300 CCE1 CC16 CC16A CC16B CC17B for sale

Model Number : ZTE B8200

Place of Origin : China

Brand Name : Huawei

Number name : ZXSDR CC16B

Products Status : Stock

Certification : CE FCC RoHS

Packaging Details : Export carton package

Port : Shenzhen

Supply Ability : 200 Piece/Pieces per Week

Price : Negotiable

MOQ : Negotiable

Delivery Time : 7-15 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

ZTE CC16B Control&Clock board for

ZTE B8200 B8300 CCE1 CC16 CC16A CC16B CC17B

ZXSDR B8200 Large-Capacity Compact BBU

The ZXSDR B8200 is a large-capacity compact Base Band Unit (BBU) with separate baseband and RF based on the mature and stable Software Defined Radio (SDR) platform. ZTE has applied the unified advanced SDR platform to WiMAX, GSM, CDMA, WCDMA and LTE.

The ZXSDR B8200 and ZTE RRU series constitute a complete TD-LTE eNodeB. Compared with traditional networking solutions, the BBU + RRU networking solution not only avoids the dependence on equipment rooms and reduces the difficulty of deployment, but also effectively accelerates network construction, meeting operators’ requirements for rapid and low-cost network construction.

Product Feature

Product Highlights

Mature and stable by adopting the unified platform
Flexible configuration, meeting the capacity requirements for multi-band/multi-mode networking and also the expansion requirements in the future
At most 6 baseband processing boards and 18 cells with 2*2MIMO, fully meeting TD-LTE system capacity requirements
At most 18 interfaces between BBU and RRU, leading the industry. Each interface supports one 6.144G optical interface.
Full-rate GE optical and electrical interfaces
Synchronization with IEEE1588 V2, enabling flexible network deployment
Seamless evolution
G/T/L multi-mode multi-system unified platform
R8840 is a UMTS multi-carrier radio unit, working on 2100MHz/AWS. R8840 supports maximum 4 carriers, the output power is 60W. R8840 module consists of MCPA (multi-carrier power module) module, transceiver module, duplex filter LNA and RPWAC/DC (Power for AC or DC). There are one TX/RX port and one RX port for connecting antenna. R8840 employs compact cabinet design, as shown in Figure 16. Dimension of R8840 is 370×320×160mm (H×W×D).

R8860 is multi-carrier RF module, working on 850/900/1800/1900MHz. R8860 can be configured as GSM only, UMTS only or mixed mode module. R8860 can be configured to 1 to 6 TRX in GSM mode. In case of GMSK modulation, 80W TOC output power can be provided. If R8860 is used as UMTS mode, it can support 4 carriers with 80W TOC output power. In mixed mode, R8860 can support 4 GSM TRX and 1 UMTS carriers or 2 GSM TRX and 2 UMTS carriers.

R8880 is a multi-carrier RF module. R8880 can be configured as UMTS mode. It can process 2 received signals and 2 transmitted signals. Each one can support 2*2 MIMO in HSPA+ mode on 2100MHz. Its output power achieves up to 2*60W (TOC). It is mainly used for outdoor macro coverage and also used for indoor coverage signal source. R8880 can be configured as UMTS mode. R8880 can support 3 carriers when it ensures the 2*20W output power for each carrier.

R8882 is a multi-carrier RF module. R8880 can be configured as UMTS mode. It can process 4 received signals and 2 transmitted signals. Each one can support 2*2 MIMO in HSPA+ mode on 2100MHz. Its output power achieves up to 2*60W (TOC). It is mainly used for outdoor macro coverage and also used for indoor coverage signal source. R8880 can support 3 carriers when it ensures the 2*20W output power for each carrier.

Warranty

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Company profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.

Our Services

Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
